LOADCELLS

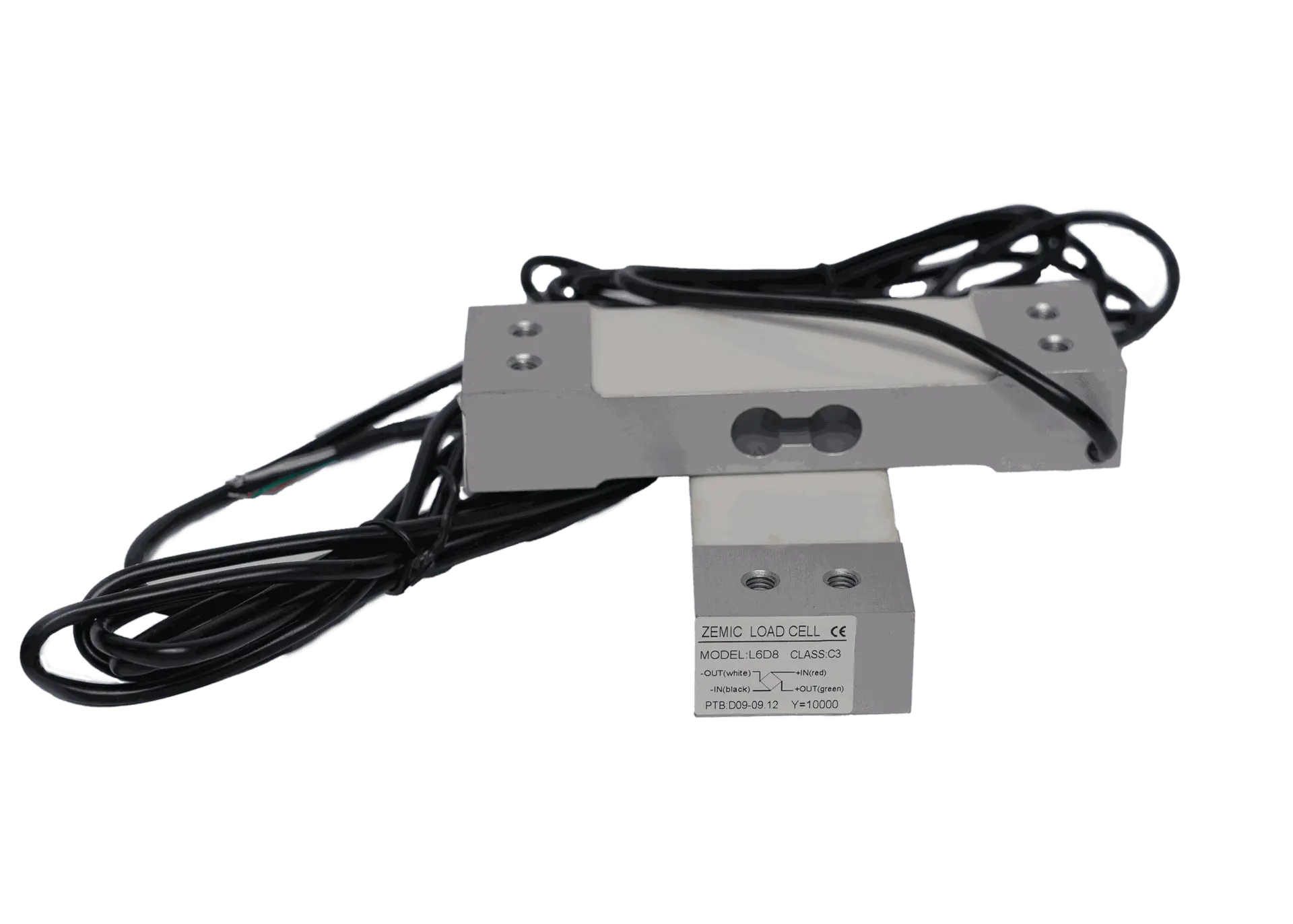

The Zemic L6D8 stands out as a precise, reliable, and compact single-point load cell tailored for moderate-capacity weighing systems.

Type & Material: Aluminum-alloy single-point load cell with colorless anodized finish, designed to withstand industrial environments.

Ingress Protection: Rated IP65, providing effective resistance against dust and water

Recommended Platform Size: Up to 350 × 350 mm, ensuring good weight distribution and accuracy across the platform.

Versatile Capacity Range: Ideal for medium-duty retail and bench scale applications.

High Accuracy & Stability: Offers high verification intervals and tight error specifications, especially in C3

Reliable in Varied Conditions: Good temperature compensation, strong overload margins, and consistent performance.

The L6E3 is a single-point aluminum load cell designed for small to medium platform scales. It offers high accuracy, reliability, and compact design, making it suitable for both commercial and industrial weighing applications.

Type: Single Point Load Cell

Type & Material: Aluminum-alloy single-point load cell with colorless anodized finish, designed to withstand industrial environments.

Ingress Protection: Rated IP65, providing effective resistance against dust and water

Versatile Capacity Range:  Ideal for medium-duty retail and bench scale applications.

Recommended Platform Size:  Up to 400 × 400 mm, ensuring good weight distribution and accuracy across the platform.

High Accuracy & Stability: Offers high verification intervals and tight error specifications, especially in C3

Reliable in Varied Conditionson, strong overload margins, and consistent performance.

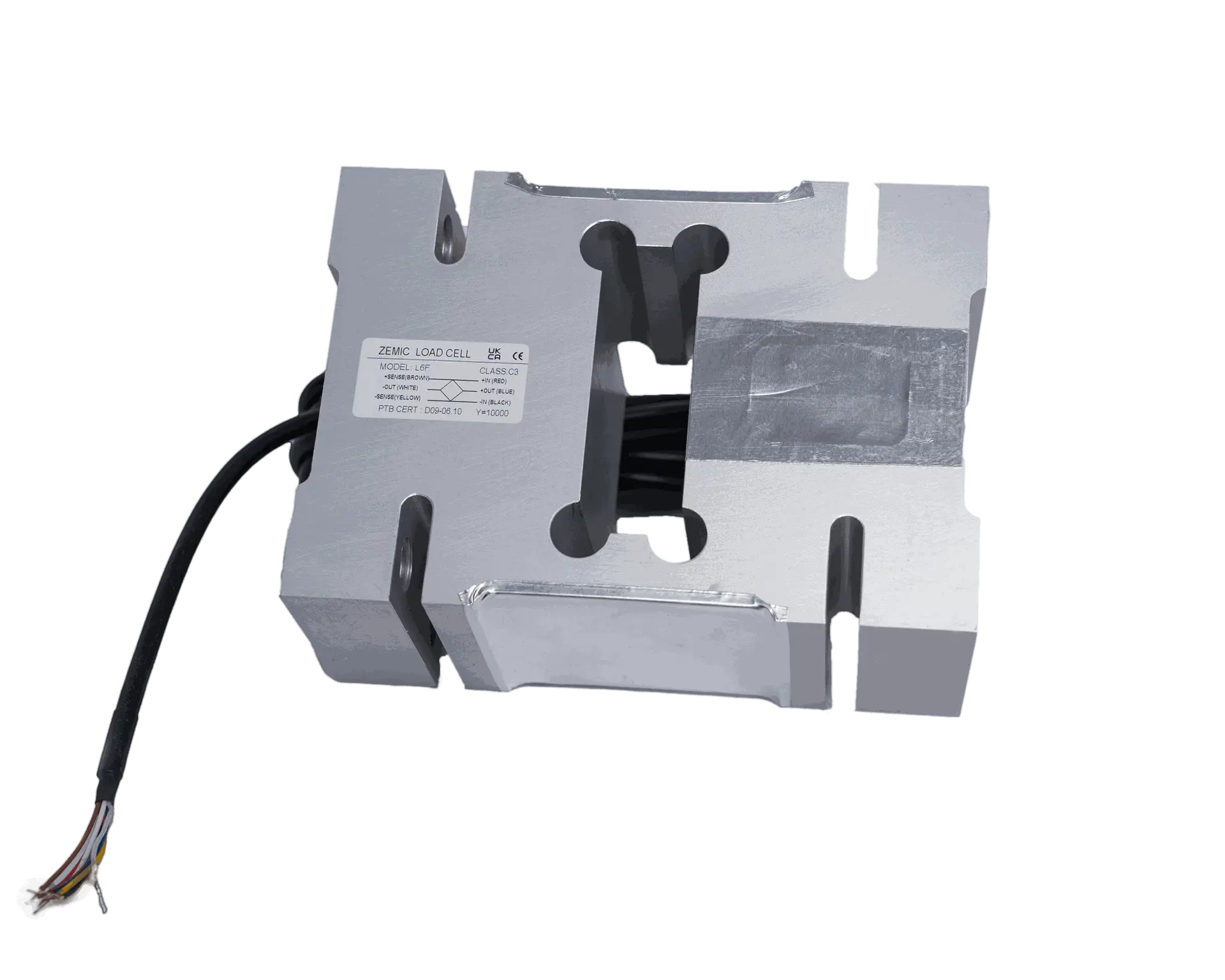

The L6F is a single-point aluminum load cell designed for platform and bench scales. It is one of Zemic’s most popular load cells for medium-capacity weighing applications.

 Key Features

Type: Single point load cell, Aluminum alloy (anodized)

High Accuracy & Stability: Offers high verification intervals and tight error specifications, especially in C3

Versatile Capacity range:Ideal for medium-duty retail and platform scale applications.

Accuracy class: OIML R60 C3 (Trade approved, high accuracy)

Recommended platform size: up to 600 × 600 mm

Protection: IP65 (dust-tight, protected against water spray)Applications: Platform scales-packaging & filling machines Industrial weighing equipment

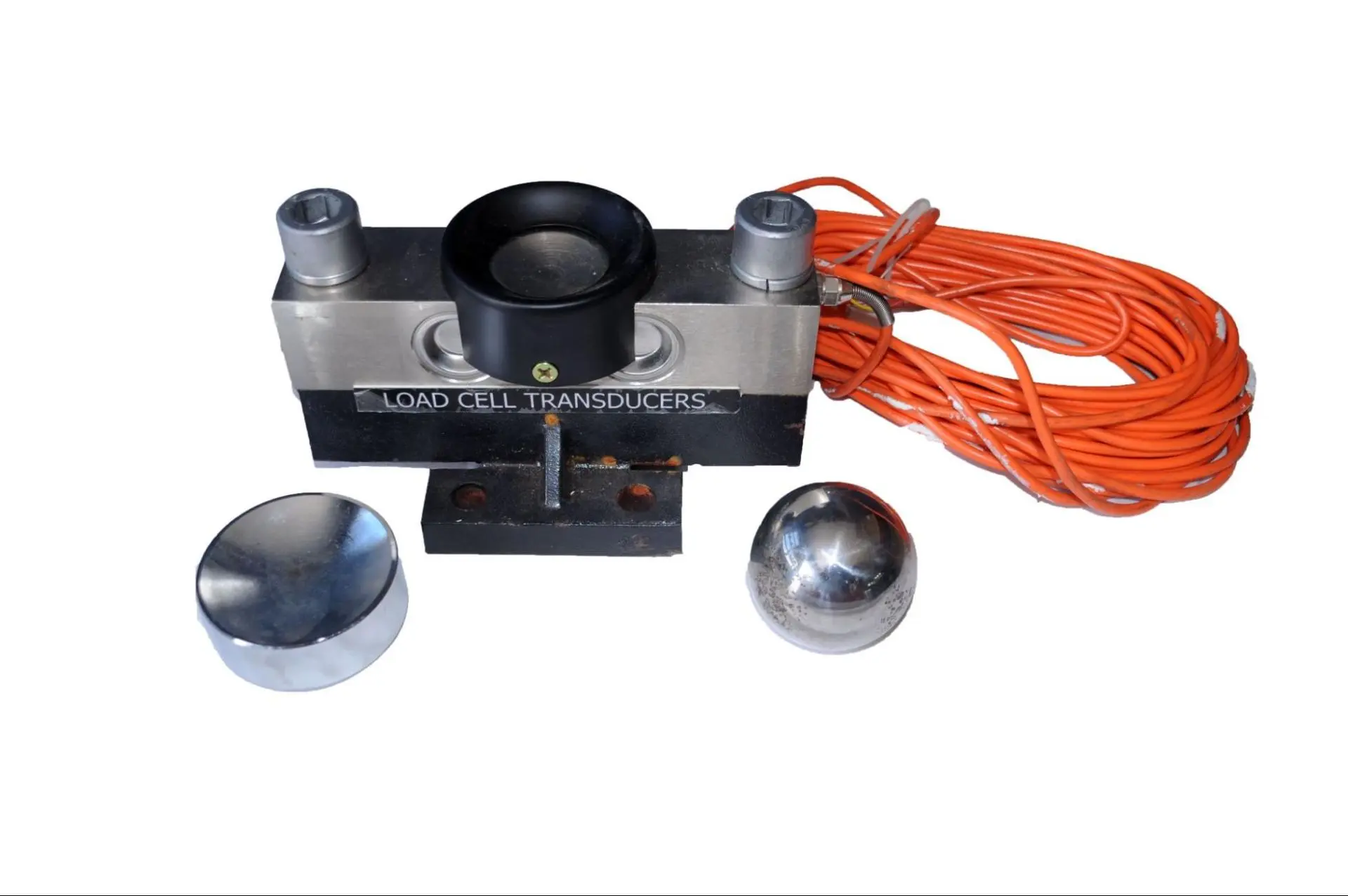

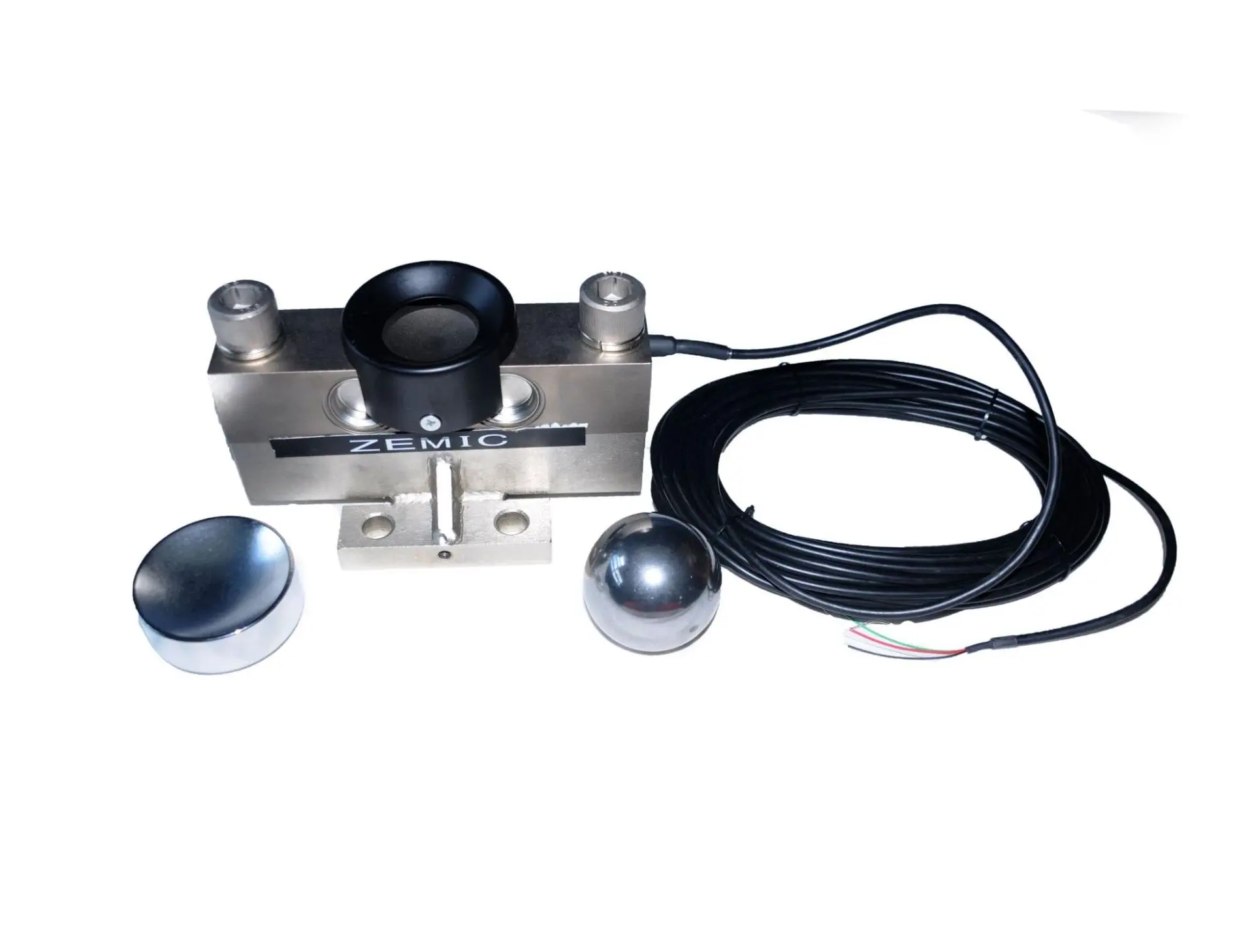

Capacity 10 -100 t

Durability due to hardened, wear-resistant materials,High-grade alloy steel or stainless steel, nickel-plated for corrosion resistance.

They are commonly used in truck weighbridges,  tank/hopper weighing systems, and industrial weighing machines.

Designed for high accuracy and heavy-duty applications.

They are usually hermetically sealed for protection against dust, moisture, and harsh environmentsI,IP67 / IP68 (dustproof & waterproof, suitable for outdoor weighbridges).

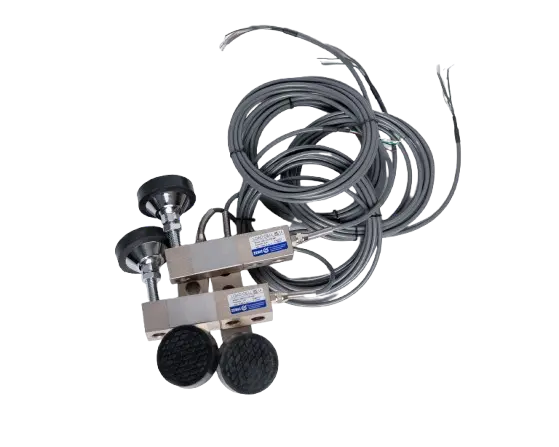

The H8C is a high-accuracy shear beam load cell designed for medium to heavy-capacity weighing applications. It is one of ZEMIC’s most widely used load cells, especially in platform scales, floor scales,  and hopper/tank weighing systems.

Type: Shear Beam Load Cell Provides excellent accuracy and is commonly used in medium to heavy weighing systems.

Material: Alloy Steel, Nickel Plated Strong and durable material, designed to withstand heavy loads without permanent deformation.

Capacity Range: 100 kg → 10,000 kg  Wide range makes it versatile for many applications — from small floor scales to large platform scales.Ideal for both light industrial use and heavy-duty applications

Sealing Protection: IP68.IP68: Hermetically sealed, suitable for continuous immersion and harsh outdoor use. This makes the H8C suitable for wet environments, food processing plants, and outdoor weighbridges.

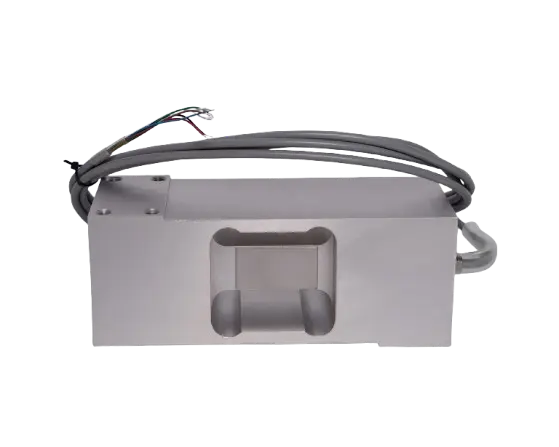

The L6T is a single-point aluminum load cell designed for platform and bench scales. It is optimized for medium-size weighing platforms while maintaining high accuracy. With OIML certification, it is widely used in retail, industrial, and packaging applications.

Type: Single Point Load Cell Measures load applied at a single point, compensating for off-center loading.Ideal for bench scales and medium platform scales.

Material: Aluminum Alloy (Anodized)Lightweight yet durable construction. Anodized finish provides corrosion resistance, making it suitable for indoor and semi-industrial use.

Capacity Range:  Covers small to medium capacity weighing needs.Suitable for retail scales, parcel weighing, and packaging machines..

Recommended Platform Size: Up to 600 × 600 mm Designed for medium-size scales.Maintains accuracy across the platform (compensated for eccentric loading).

Sealing Protection: IP65 Dust-tight and protected against low-pressure water jets.
