Digital Weigh Scale Indicators

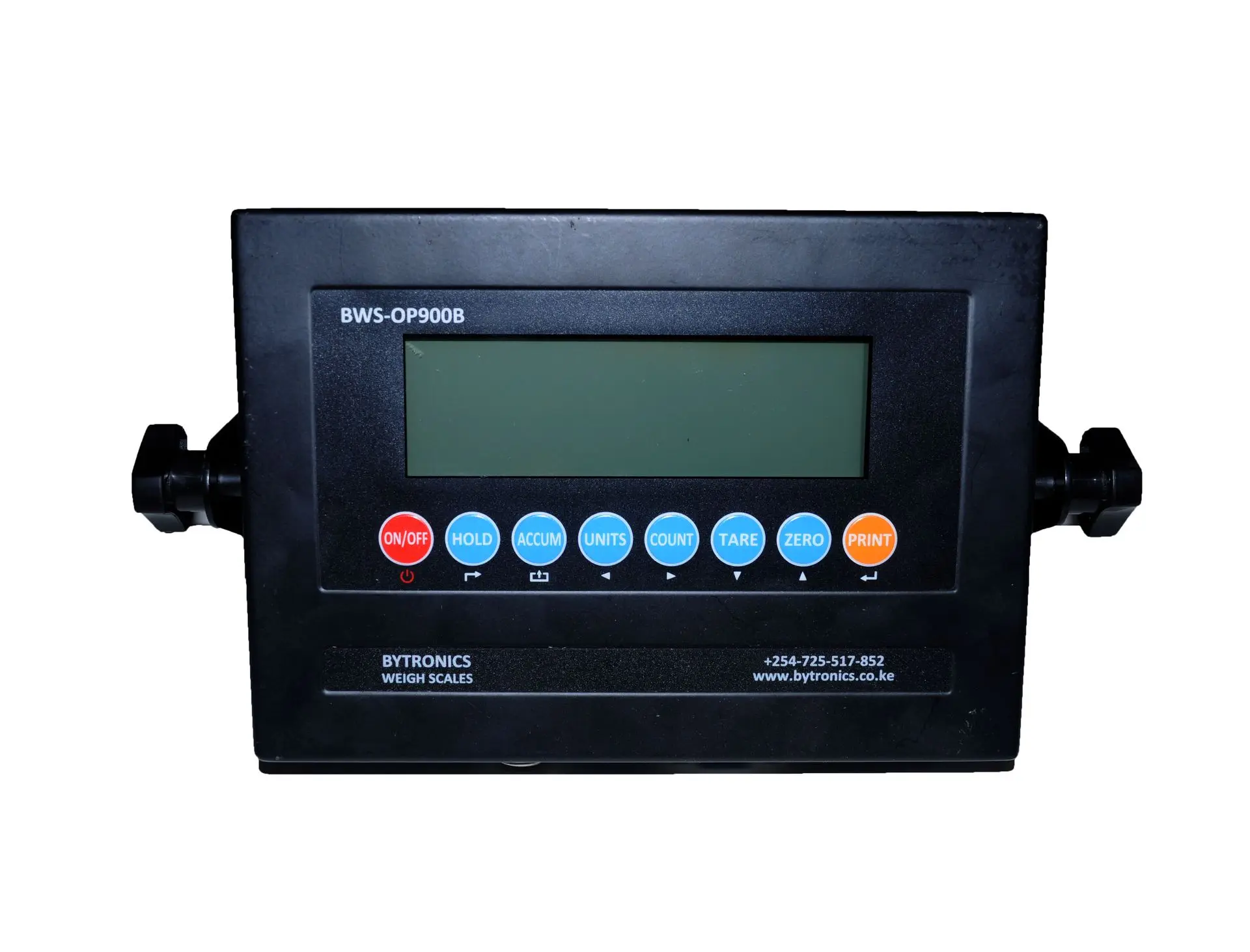

DIGITAL INDICATOR-BWS-OP 900
Standard Features:
- BWS-OP-900 NTEP indicator with LED or LCD display
- 1" Tall backlit display
- Optional Rechargeable battery (up to 100 hrs)
- Metal casing (Stainless steel or wash-down upgrade-able)
- AC adapter included
- Weighing units: (LED:kg/lb (LCD:lb/kg/g/oz/lb:oz)
- Gross/Tare/Pre-Set Tare/Zero
- Multiple Hold functions Count weighing
- Accumulation weighing Overload / Underload alarm
- Splash proof keyboard and display Connects to a remote display and printer
- Displays up to 50,000 graduations Full Duplex RS-232 Serial Port
Request a quote for a Digital Weigh Scale Indicator
Send us a request and we shall share a quote to you immediately
BWS-420 Plus Digital Weight Indicator
The 420 Plus is a single-channel digital weight indicator housed in a NEMA Type 4X/IP66-rated stainless steel enclosure. The indicator front panel consists of a large (.8 in, 20 mm), six-digit, and seven-segment LED display and twenty-one-button keypad. Features include:
Standard Features:
- Drives up to eight 350 ohm or sixteen load cells
- Supports 4- and 6-wire load cell connections
- Two configurable digital inputs
- Two configurable digital outputs
- Electronic data processing (EDP) port for full duplex, RS-232 communications at up to 38400 bps
- Printer port for output-only RS-232 or 20 mA current loop communications at up to 38400 bps
- Optional analog output module provides 0–10 VDC or 0–20/4–20 mA tracking of gross or net weight values
- Available in 115 VAC and 230 VAC versions
- Available in DC power version The 420 Plus is NTEP-certified and pending Measurement Canada approval for Classes III, III HD, and III L at 10,000 divisions
Request a quote for a Digital Weigh Scale Indicator
Send us a request and we shall share a quote to you immediately

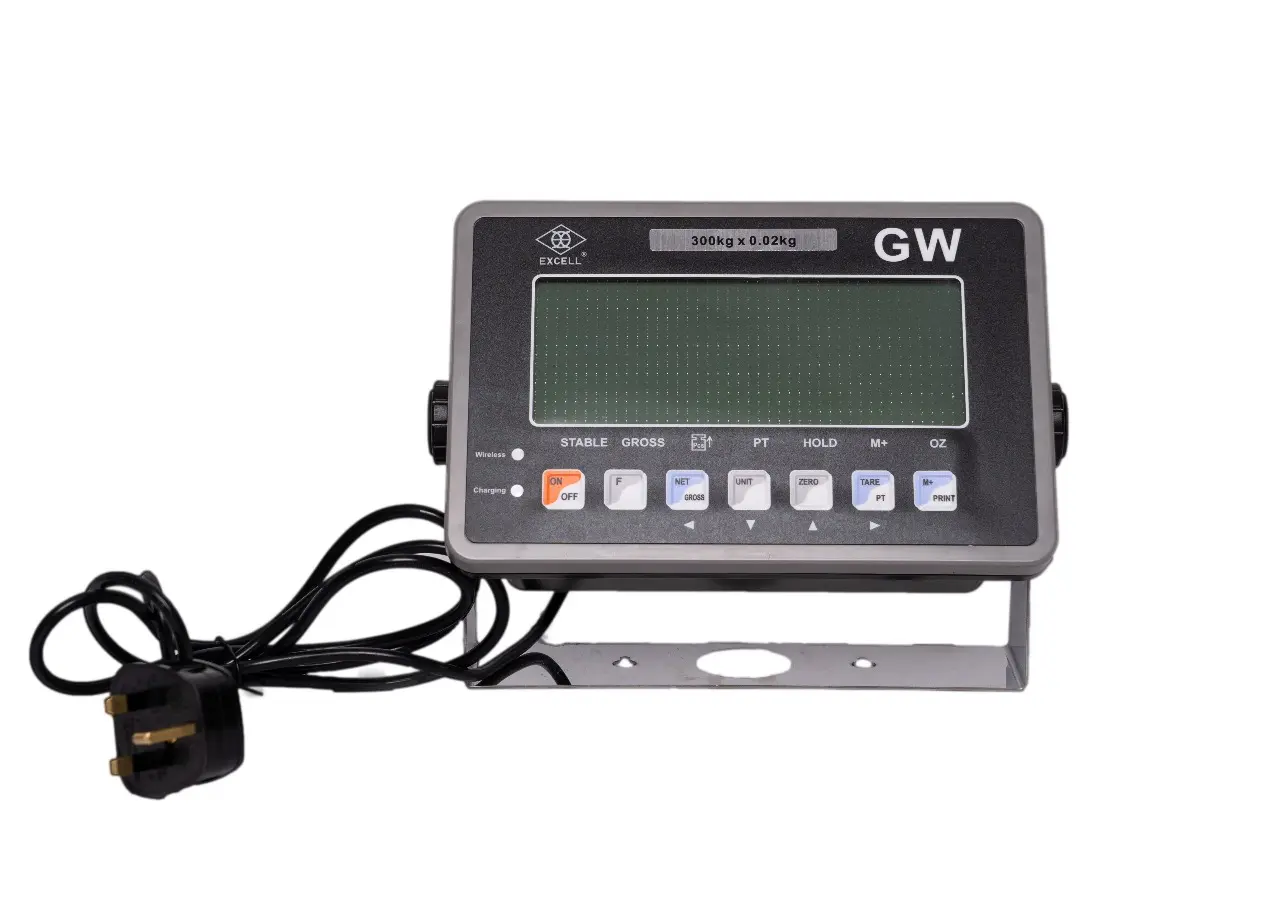

BWS-EXCELL GW 68 INDICATOR
Standard Features:
- IP 68: mist-proof, waterproof and dustproof
- Extra-large and wide LCD display (175 x 70mm) 6 digits with 55mm height
- LCD display with COOL WHITE LED backlight
- RS-232+RTC(Real Time Clock) interface
- Up to 1/15,000 display resolution
- Unit switch key for Kilogram (kg) and pound (lb), etc.
- Full range tare, Pre-tare, Auto zero tracking, Sampling counting, Gross/Net Indication
- Hold function, Check mode Lo / Hi / OK, Auto average unit weight, Animal scale function
- Low power indication and auto power off
- The Sleeve connecting stand comes standard; the U shape stand is optional
Specification: Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F) Power Source: AC110V/230V (±10％) or DC 6V / 4Ah rechargeable battery Dimensions: 238 x 156 x 90mm ( W x H x D) Display: LCD 6 Digits; 55 mm (Height); COOL LIGHT LED back light
Options:
- Wireless for distance 100M available (SPP mode supported)
- Convenient foot switch for Zero, or Tare, or Print
- RS-485 data-transfer interface U shape stand
Request a quote for a Digital Weigh Scale Indicator
Send us a request and we shall share a quote to you immediately

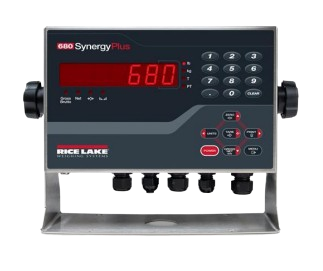

BWS- RICE LAKE 680 Synergy Plus Indicator
Standard Features:
- Bright seven-digit, seven-segment LED display
- Battery backed time and date
- Full numeric keypad
- Three serial ports: two RS-232, one full duplex RS-485
- Numeric keyed entry allowed for tare and set point entry
- Formattable tickets
- Ethernet TCP/IP
- USB device
- Stainless steel IP69K enclosure
- Four onboard configurable digital I/O points, TTL logic
680 Synergy Series Options:
- Analog output: 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
- RJ45 Ethernet connector
Note: IP Rating is IP66 with RJ45 option
Request a quote for a Digital Weigh Scale Indicator
Send us a request and we shall share a quote to you immediately
BWS-VPG VT300D DIGITAL INDICATOR
The extended keyboard includes alphanumeric and functional keys for easy data entry and setup. A 16-character dot-matrix LCD display supports the required user interface in complex industrial applications. Using a weighing system that includes the VT 300D together with VPG Transducers digital load cells (DSC, SCC, SBC and MDBD) enables very easy installation, calibration, corner compensation, maintenance and diagnostics of the system. VT 300D software manages various transactions allowing choices of customer, material type, or truck identification. Records of all activities are maintained in memory and made available for computer reporting. Printable tickets and reports are easily formatted and edited. The VT 300D can support one digital load cells weighbridge and one analog load cell weighbridge at same time. Enclosure selections include tilted, wall-mount, and desktop.
Standard Features:
- Supports digital and analog load cells
- Easy calibration using the digital load cells
- Easy digital corner compensation
- Elaborated diagnostics of digital weighbridge load cells
- Easy service and maintenance
- Large, 16-character LCD display
- 27-key alphanumeric and functions keyboard
- Two serial ports with printing and networking
- Analog output for PLC interface (optional)
- Two opto-isolated weight set points
- Alibi (Flash) memory for transaction records
- Real-time clock
- Stainless steel enclosure (IP65), aluminum enclosure (IP40)
- Weighing and counting operating modes
- OIML R-76 approved to 10,000d
- Dual scale operation (one digital, one analog)
- 4 programmable ticket formats
Applications:
- Weighbridges
- Inventory Control
- Industrial weighing systems
- Bench, floor and counting scales
Request a quote for a Digital Weigh Scale Indicator
Send us a request and we shall share a quote to you immediately
Request a Quote for a Digital Weigh Scale Indicator
Provide us with more details about the digital weigh scale indicator you are looking for and we shall get back to you immediately.
